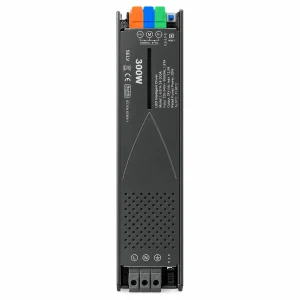

LiJie L9 300W 24V Constant Voltage Intelligent Dimming LED Driver

The LiJie L9 300W 24V Constant Voltage Intelligent Dimming LED Driver is designed for professional indoor low-voltage lighting systems that require stable power output, intelligent dimming and compact installation.

Model LJ-L9ZN24-300A provides a stable DC 24V constant voltage output with a maximum output current of 12.5A and a maximum rated output power of 300W.

With its slim aluminum housing, intelligent dimming design and built-in structure, the L9 Series provides a practical LED power solution for commercial linear lighting, architectural lighting and intelligent indoor lighting systems.

Stable 24V Constant Voltage Output

The L9 300W LED Driver is designed to deliver stable DC 24V constant voltage output for compatible low-voltage lighting systems.

With a maximum output current of 12.5A and maximum rated output power of 300W, the LJ-L9ZN24-300A is suitable for lighting installations with relatively high total power requirements.

Intelligent Dimming Design

The LiJie L9 Series is developed as an intelligent dimming constant voltage LED power supply for modern low-voltage lighting applications.

Its integrated control design allows the LED driver to work with compatible intelligent lighting control systems while maintaining stable 24V output.

The connection terminals and control interfaces are clearly arranged to help simplify installation, wiring and maintenance in professional lighting projects.

Slim Design for Space-Saving Installation

The L9 Series uses a slim and elongated housing design, making it easier to integrate into lighting systems where installation space is limited.

Compared with conventional bulky power supplies, the narrow housing helps provide a cleaner built-in installation for commercial linear lighting and intelligent lighting systems.

Durable 2.6mm Aluminum Housing

The L9 Series uses a 2.6mm thick aluminum profile housing, providing a strong and durable enclosure for professional lighting applications.

The aluminum housing also helps with heat dissipation during operation. Its anodized surface treatment is designed to improve resistance to corrosion, rust and everyday wear.

Gel Injection Process

The L9 Series uses a gel injection process as part of its internal construction design.

Combined with the aluminum housing, this construction is designed to provide practical protection for internal electronic components while supporting long-term use in built-in lighting installations.

300W LED Driver Technical Specifications

Input Voltage and Market Versions

The available product and certification documents show different rated input voltage ranges depending on the product version and target market.

The Global-Mark certification documentation lists the LJ-L9ZN24-300A with an input rating of 100-240Vac, 50/60Hz.

The TÜV SÜD EMC conformity documentation covers a rated input voltage of 220-240VAC, 50/60Hz for the assessed L9 Series models.

Customers should therefore confirm the actual product nameplate, model version and destination-market requirements before ordering or installation.

Third-Party Safety Documentation

The LiJie L9 Series is supported by independent third-party safety documentation.

A Global-Mark Certificate of Suitability covers the LiJie constant voltage LED driver series, including model LJ-L9ZN24-300A.

For the 300W model, the certification documentation specifies 24Vdc output, 12.5A maximum output current, 300W maximum output power, built-in installation, SELV and IP20.

TÜV SÜD EMC Conformity Assessment

The LiJie L9 Series has also undergone electromagnetic compatibility conformity assessment by TÜV SÜD under Directive 2014/30/EU.

The referenced EMC standards include:

• EN IEC 55015:2019/A11:2020
• EN IEC 61000-3-2:2019/A2:2024
• EN 61000-3-3:2013/A2:2021
• EN IEC 61547:2023

The TÜV SÜD document is an EMC Attestation of Conformity. It does not by itself replace the manufacturer’s EU Declaration of Conformity or independently authorize CE marking.

Multiple Power Options from 60W to 300W

The LiJie L9 Series offers multiple power options for different lighting system requirements:

• 60W
• 100W
• 150W
• 200W
• 250W
• 300W

The series uses a 24V constant voltage output platform, allowing lighting manufacturers and project contractors to select a suitable power level according to the total lighting load and system requirements.

Suitable Applications

The L9 300W LED Driver is mainly designed for protected indoor low-voltage lighting applications, including:

• Commercial Linear Lighting
• Architectural Linear Lighting
• Intelligent Lighting Systems
• Commercial Interior Lighting
• Built-in Lighting Installations
• 24V Constant Voltage Lighting Systems
• Low-Voltage Lighting Control Systems

Why Choose the LiJie L9 300W LED Driver?

The L9 Series combines constant voltage output, intelligent dimming and a compact aluminum structure in one professional LED power supply.

• Stable DC 24V Constant Voltage Output
• 300W Maximum Output Power
• 12.5A Maximum Output Current
• Intelligent Dimming Design
• Slim Space-Saving Structure
• 2.6mm Aluminum Profile Housing
• Anodized Surface Treatment
• Built-in Installation Design
• SELV Output
• IP20 Protection Rating
• Third-Party Safety Documentation
• TÜV SÜD EMC Conformity Assessment

LiJie LED Power Supply Manufacturer

The L9 Series is manufactured by Zhongshan Lijie Intelligent Technology Co., Ltd., a manufacturer focused on LED power supply solutions for professional lighting applications.

LiJie provides LED driver solutions for lighting manufacturers, distributors, contractors and commercial lighting projects.

For OEM, ODM and project requirements, customers can select the appropriate power configuration according to system voltage, lighting load, installation space and destination-market requirements.

Frequently Asked Questions

Is the LJ-L9ZN24-300A a constant voltage LED driver?

Yes. The LJ-L9ZN24-300A is a 24V constant voltage LED driver with a maximum output current of 12.5A and a maximum rated output power of 300W.

Does the L9 300W LED Driver support intelligent dimming?

Yes. The L9 Series is designed as an intelligent dimming constant voltage LED power supply. The exact control configuration should be confirmed according to the selected product version and lighting control system.

What is the output voltage of the 300W model?

The LJ-L9ZN24-300A provides a rated DC 24V constant voltage output.

What is the maximum output current?

The 300W model provides a maximum output current of 12.5A.

Can the L9 300W LED Driver be used outdoors?

The available certification documentation identifies the product as IP20 and built-in. It is therefore mainly intended for protected indoor installations.

What power options are available in the L9 Series?

The documented L9 Series includes 60W, 100W, 150W, 200W, 250W and 300W models.

Is the L9 Series CE certified?

The available TÜV SÜD document is an EMC Attestation of Conformity under Directive 2014/30/EU. The document itself does not replace the manufacturer’s EU Declaration of Conformity and does not independently authorize CE marking.

What is the size of the 300W LED Driver?

The product information lists the 300W model at approximately 298 × 50 × 30 mm.

Where can the LiJie 300W 24V LED Driver be used?

It is suitable for protected indoor low-voltage linear lighting, commercial lighting, intelligent lighting systems and other professional applications requiring stable 24V constant voltage power.
